Air Bag Lift Table QN1000

The QN1000 Air Bag Lift Table is an innovative material handling solution that combines safety, power, and ease of use. Unlike conventional lift tables, our air-powered system eliminates the need for electricity or hydraulics, providing a cleaner, safer activation system with significantly less maintenance.

دلائل الميزات

  • 1000kg (2200lbs) load capacity - Handles heavy industrial loads with ease

  • EN1570 & ANSI/ASME compliant - Meets strict international safety standards

  • Electricity-free operation - Safe for all environments with no hydraulic fluids

  • Low maintenance design - Fewer moving parts than conventional lifts

  • Quick lift time - 25-30 seconds from min to max height

  • Easy mobility - Designed for convenient repositioning

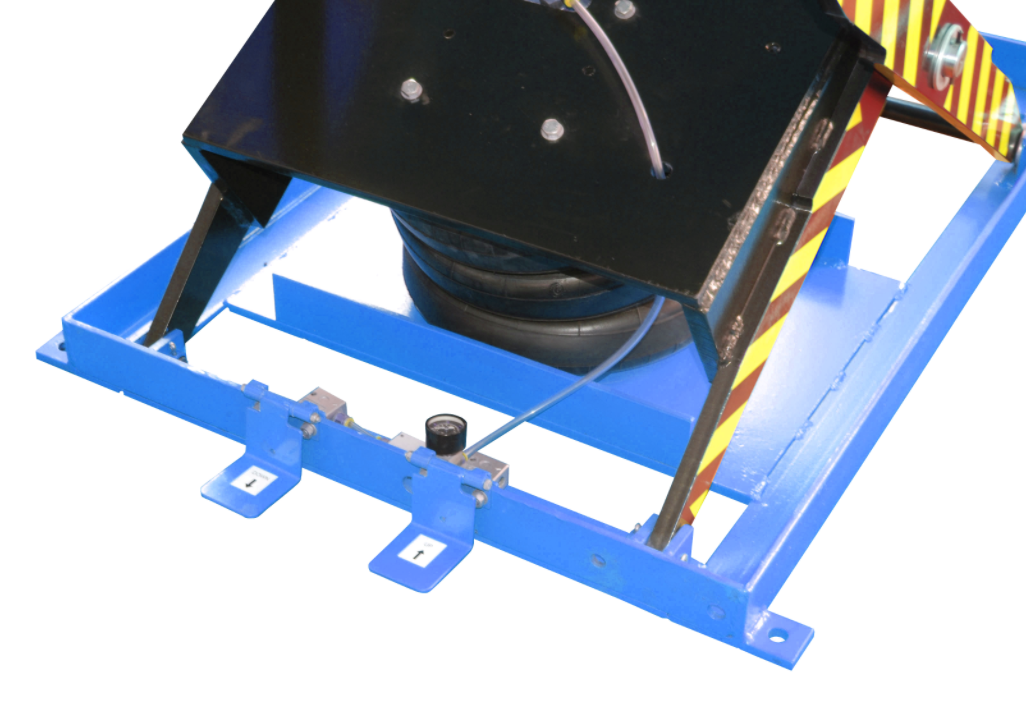

EN1570 certified QN1000 pneumatic lift tableClose-up of QN1000's air bag mechanism

Technical Specifications Table

تخصيصتفاصيل
Model NumberQN1000
Product Code1312301
سعة1000 kg (2200 lbs)
Height Range230-840 mm (9-33 inches)
حجم المنصة1220×812 mm (48×32 inches)
Base Frame Size1220×785 mm (48×31 inches)
Operating Pressure0.6 Mpa
وقت الرفع25-30 seconds
الوزن الصافي263 kg (579 lbs)

Why Choose the QN1000 Air Bag Lift Table?

  1. Enhanced Safety - No electricity or hydraulics means no risk of fluid leaks or electrical hazards

  2. Reduced Downtime - Minimal maintenance requirements keep your operations running smoothly

  3. Versatile Positioning - Low 230mm minimum height makes loading easy, with 840mm maximum reach

  4. Clean Operation - Ideal for food processing, pharmaceutical, and cleanroom environments

In addition to this model, our Pneumatic Lift Table offers solutions for various industrial requirements.

Ready to improve your material handling with the QN1000 Air Bag Lift Table? Contact our experts today for pricing and availability!
