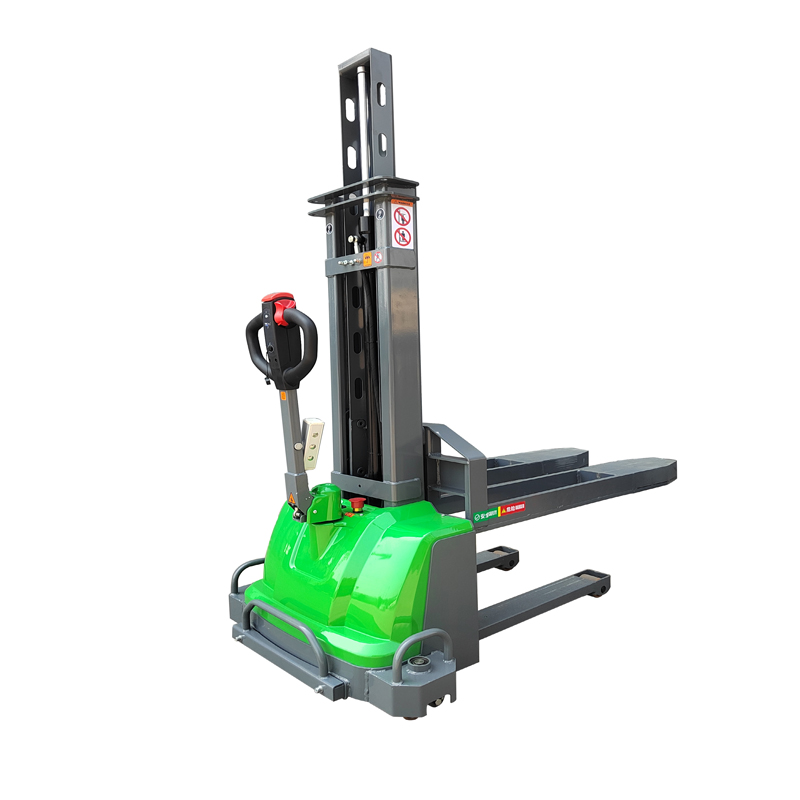

Full electric self-propelled Lifter FEYG

●Self-propelled lifter can transport with the goods in light to medium commercial vehicles

●Self -propelled lifter can lift itself into and out of the delivery vehicle.

●Self -propelled lifter quickly loads itself and the palletised cargo onto the van and unloads the van at the destination,leaving the driver to operate completely independently from the warehouse staff and all but eliminates manual loading and unloading.

●Self-propelled lifter could be used for following industries:

▲Car Manufacturers

▲Transport and Haulage

▲Warehousing

▲Civil Engineering Companies

▲Heating and Electrical Equipment Suppliers

▲Generator Power Systems

▲Exhibitions

▲Logistics

▲Furniture

▲Stone Masons



رقم الرفع15522011552202155220315522041552205155220615522071552208
نموذجFEYG1009FEYG1011FEYG1013FEYG1015FEYG1209FEYG1211FEYG1213FEYG1215
DriveElectric(battery)
Driving modeWalking
Rated load Qكجم (رطل)1000(2200)1200(2640)
مركز التحميل جمم (بوصة)400(15.7)
Wheels materialالبولي يوريثين
Wheel size,drive wheelمم (بوصة)Φ 190 × 70 (7.5 × 2.8)
Wheel size,balancing wheelمم (بوصة)Φ75x35(3x1.4)
Wheel size,front wheelمم (بوصة)Φ80x70（3.1x2.8）
Max Fork Height h13مم (بوصة)900（35.4）1100(44)1300(51.2)1500(59)900(35.4)1100(44)1300(51.2)1500(59)
Overall Height l1مم (بوصة)1250(49.2)1450(57)1650(65)1850(72.8)1250(49.2)1450(57)1650(65)1850(72.8)
Maximum height of the entire vehicle during operationمم (بوصة)2480(97.6)2680(105.5)2880(113.4)3080(121.3)2480(97.6)2680(105.5)2880(113.4)3080(121.3)
Min.fork height h13مم (بوصة)85(3.3)
Overall length l1مم (بوصة)1730(68.1)
Fork Size S/E/Lمم (بوصة)60/195/1220(2.4/7.7/48)
Fork outer width b5مم (بوصة)560/600(22/23.6)
Ground clearance m2مم (بوصة)10(0.4)
Climbing ability,loading/unloading%3/5
الفراملElectromagnetism
قوة محرك الدفعكو0.75
رفع قوة المحرككو2
Li-ion Battery voltage/rated capacityت / اه48/25(Optional 30AH)
وزن البطاريةكجم (رطل)12(26.4)
Steering modeMachinery
الوزن الصافيكجم (رطل)388(853.6)395(869)402(884.4)408(897.6)388(853.6)395(869)402(884.4)408(897.6

Efficiency and convenience are at your fingertips with our state-of-the-art Full Electric Self-Propelled Lifter. Designed to revolutionize the way you handle your truck's cargo, this lifter is the ultimate companion for seamless loading and unloading operations.

دلائل الميزات:

  1. Electric Power: Our lifter is fully electric, providing a clean and quiet operation that is kind to the environment and your workforce.
  2. Self-Propelled: Equipped with a self-propulsion system, it allows for easy movement around your warehouse or loading dock without the need for manual pushing.
  3. Load and Unload with Ease: With its user-friendly controls and robust lifting mechanism, this lifter makes the process of loading and unloading a breeze, reducing the physical strain on your team.
  4. Versatility: Suitable for a variety of truck sizes and cargo types, this lifter is designed to be a versatile asset in your logistics operations.
  5. Safety First: Incorporating advanced safety features, including an emergency stop button and overload protection, ensuring the safety of your staff and the integrity of your cargo.
